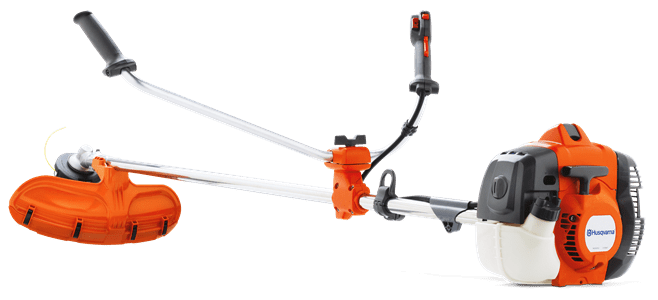

HUSQVARNA 135R
Regular price
£539.00
Tax included.
-
Ready to Ship. Estimated 2-5 Working Days
HUSQVARNA 135R
966 60 48-02
Cutting width: 47 cm
Grass blade: Multi 300-3
Trimmer head: T35 M12
Weight (excl. cutting equipment): 6.8 kg
Description
Versatile brushcutter, perfect for homeowners. Easy starting with Auto-return stop switch and fuel pump. The X-Torq® engine provide raw power and excellent fuel economy. Comes with double harness, easy loading semi automatic trimmer head and grass knife.
Features
Standard double harness
Standard double harness for lighter brushcutters provides a comfortable working position. The weight is distributed evenly over the shoulders and the harness is padded for extra convenience.
Adjustable handle bar
Adjustable and ergonomically designed handlebar for best comfort.
X-Torq® engine
The X-Torq® engine design increases torque over a wider rpm range providing maximum cutting power.
High Line Capacity
Heavy duty twin line cutting system with Tap'n Go. Line feeding is done quick and effortlessly by simply pushing the trimmer head into the ground.
Quick Start with Air Purge
Air purge removes air from carburetor and fuel system for easy starting
Auto return stop switch
When the machine is turned off, the stop button automatically returns to start position for trouble free start.
Combi-guard
The cutting attachment combi-guard can be used with either a grass blade or a trimmer head.
Grass bevel gear
Bevel gear designed for optimal cutting performance. It provides high torque and ensures the correct angle so that the cutting equipment is kept parallel to the ground.
Ergonomic handle
Comfortable handle design.
Capacity
Clutch engagement speed (±120)
3800 rpm
Idling speed
2900 rpm
Maximum power speed
8400 rpm
Maximum rpm output shaft
8220 rpm
Power output
1.4 kW
Torque, max.
1.8 Nm
Torque, max. at rpm
6600 rpm
Certifications
Cert machine dir. 2006/42/EC Decl. No.
Yes
Dimensions
Article gross weight
11806 g
Article net weight
8960 g
Cutting width
47 cm
Product Size, LxWxH
174.5x27x25 cm
Tube diameter
28 mm
Tube length
1483 mm
Weight (excl. cutting equipment)
6.8 kg
Engine
Cylinder bore
38 mm
Cylinder displacement
34.6 cm³
Cylinder stroke
30.5 mm
Electrode gap
0.5 mm
Engine Family CARB
MHVXS.0354EE
Engine Family EPA
MHVXS.0354EE
Gear ratio
1
Ignition module air gap
0.3 mm
Spark Plug
Champion RCJ6Y
Equipment
Drive gear angle
35 °
Grass blade
Multi 300-3
Harness
Standard double harness
Trimmer head
T35 M12
Connectivity
Not applicable
Lubricant
Fuel consumption
435 g/kWh
Fuel tank volume
0.6 l
Lubricant type (Engine)
Husqvarna 2 stroke or equiv. at 50:1
Lubricant type (bevel gear)
Mineral grease
Power/fuel type
Gasoline
Packaging
Packaging height
310 mm
Packaging length
1850 mm
Packaging volume
189.255 dm³
Packaging width
330 mm
Pallet layers
6
Quantity in Master pack
1
