HUSQVARNA R 316TX Unit Only
Sale price
£4,999.99
Regular price
£6,299.00
-£1,299.01
Tax included.
-
Ready to Ship. Estimated 2-5 Working Days

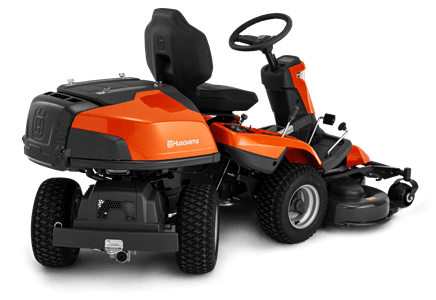

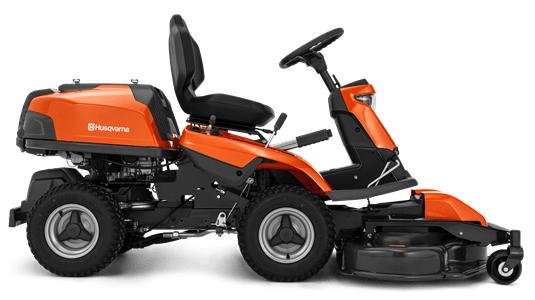

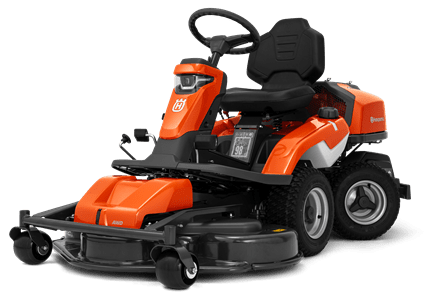

HUSQVARNA R 316TX
970 54 27-01
Cylinders: 2
Cylinder displacement: 603 cm³
Fuel tank volume: 12 l
Motor/engine manufacturer: Kawasaki
Description

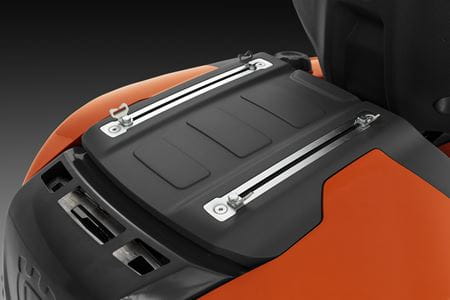

When taking on challenging lawns, you need a high-performance ride-on lawn mower with a wide range of accessories available. Husqvarna R 316TX comes with a V-twin engine and offers a choice of combi cutting decks for optional BioClip® mulching or rear ejection. The articulated steering makes tight turns smooth, while LED headlights provide greater visibility. Integrated rails on the engine hood make it easy to attach accessories like cargo holder. Ready for Husqvarna Connect with Bluetooth®
Features
Adjustable steering wheel
Steering wheel height can be adjusted with a telescopic steering column for excellent ergonomics and comfort.
Floating cutting deck
The floating cutting deck follows the contours of the ground, which reduces the risk of scalping the lawn.
Hour meter with service minder
Hour meter with service minder indicates when it's time to service your lawn mower, making it easy to keep it in the best condition.
Pivoting rear axle
The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces.
Attachment frame

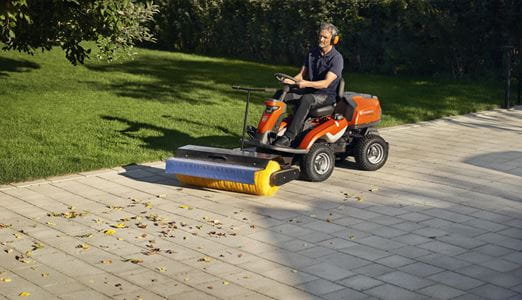

The attachment frame facilitates versatile use and makes it easy to shift between cutting decks and front-mounted attachments, such as broom, flail mower, snow blade and snow thrower.
Four large wheels
16-inch wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces.
HMI Display
The intuitive HMI display provides real-time data and guides through visual symbols and warning sounds to facilitate the driver's work.
Versatile usage
A wide range of cutting decks and attachments will make your front mower versatile, all year round.
Optional Combi cutting deck
This Rider is delivered deckless and can be fitted with 103 or 112 cm Combi cutting decks for efficient BioClip® and rear ejection cutting.
Automatic blade engagement
The blades are engaged automatically when you lower the cutting deck for a quick and smooth start of work.
Combi cutting deck with rear discharge
The rear ejection cutting mode provides high-effective cutting performance on areas with higher grass.
Pedal-operated hydrostatic transmission
Pedal-operated hydrostatic transmission – speed and direction are managed by pedals, letting you keep both hands on the steering wheel for optimal driving control.
Easy-access cutting height lever
The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.
Transparent fuel tank
Large, transparent fuel tank makes it easy to check the fuel level and plan your work accordingly.
Engine behind driver
The rear-mounted engine provides a better overview of the mowing, and less noise and emissions in the driver’s area, compared to riders with front-mounted engines.
Storage compartment
The open left storage makes it easy to access your items while mowing.
Bottle holder
Convenient bottle holder for refreshments.
External fuel cap
Thanks to the external fuel cap, you don't have to open the engine hood when refueling. The extra wide fuel tank opening makes refueling even easier.
Dual LED lights for improved visibility, both near and remote.
Dual LED lights for enlarged lighted area and safer operation in darker conditions. Improved visibility, both near and remote.
Unique articulated steering
The articulated steering gives excellent maneuverability and facilitates driving around obstacles such as trees and bushes. Since the rear pair of wheels can swing underneath the machine, the turning radius becomes minimal at full lock.
Comfortable driver's position
With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low gravity centre contributes to extra good traction as well as a comfortable 'sit-in' feeling for the user.
Front-mounted cutting deck
Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc.
Pivoting support wheels
The cutting deck is equipped with pivoting wheels for extra smooth operation when making turns. The wheels also prevent damages to the lawn surface.
Combi cutting deck with BioClip® (mulching)
BioClip® (mulching) provides perhaps the best cutting result on the market on frequently cut areas. The grass is cut into fine pieces that quickly turn into fertiliser.
Easy access
The tilting hood and easy-access servicing points make maintenance and servicing easy.
12V socket outlet
12V socket outlet makes it possible to plug in extra electric equipment, charge your cellular phone etc.
Service position
The cutting deck can be tilted up into service position for easy access during cleaning or service.
Husqvarna Connect
With the smart Husqvarna Connect app, you’ll have easy access to helpful tips, manuals and spare part recommendations. For your connected Bluetooth equipment, the app also provides additional information such as runtime and charging status as well as maintenance and service needs. The app can be downloaded, free of charge, from App Store or Google Play.
Easy-access controls
Controls are easy accessible and designed for optimum user comfort.
Battery
Battery capacity
24 Ah
Battery manufacturer
Global
Battery pack weight
7.0 kg
Battery type
Lead-Acid
Battery voltage
12 V
Quantity of batteries/battery pack
1 pcs
Capacity
Cutting Height, min-max
25-75 mm
Cutting width, min-max
94-112 cm
Power output
9.6 kW
Dimensions
Article gross weight
312000 g
Article net weight
240000 g
Base machine, height
115 cm
Base machine, length
202.4 cm
Base machine, width
88.3 cm
Cutting Height, min-max
25-75 mm
Cutting height steps
10
Cutting width, min-max
94-112 cm
Ground clearance
120 mm
Gross weight towed
125 kg
Seat back height
High
Tyre dimensions, front
170/60-8
Tyre dimensions, rear
170/60-8
Weight (complete product w/o side packed articles)
240 kg
Weight (excl. cutting equipment)
240 kg
Engine
Cylinder displacement
603 cm³
Cylinders
2
Electric start
Yes
Engine cooling
Air
Engine lubrication type
Full pressure
Engine name
FS Series V-Twin
Fuel tank volume
12 l
Fuel tank volume
3.17 gal (US)
Motor/engine manufacturer
Kawasaki
Motor/engine model
FS481V
Spark Plug
NGK BPR4ES
Equipment
12V outlet
Yes
Air filter type
Dual element
Blade engagement
Automatic
Cup holder
Yes
Cutting height adjustment
Lever, while seated
Drive method
Dual pedal-operation
Drive system
Rear wheel drive
Foldable seat
Yes
Headlights
Yes
Hinged armrests
Optional
Hour meter type
Digital with pre-programmed service intervals
Seat adjustment
Tool-less
Seat manufacturer
SEAT Industries
Seat suspension
Yes
Service position
Yes
Wheelbase
88.7 cm
Lubricants
Engine lubrication type
Full pressure
Fuel consumption
349 g/kWh
Fuel tank volume
12 l
Oil capacity
1.7 l
Oil cooler
No
Oil filter
Yes
Power/fuel type
Petrol
Packaging
Packaging height
1330 mm
Packaging length
2310 mm
Packaging volume
3441 dm³
Packaging width
1120 mm
Quantity in Master pack
1
